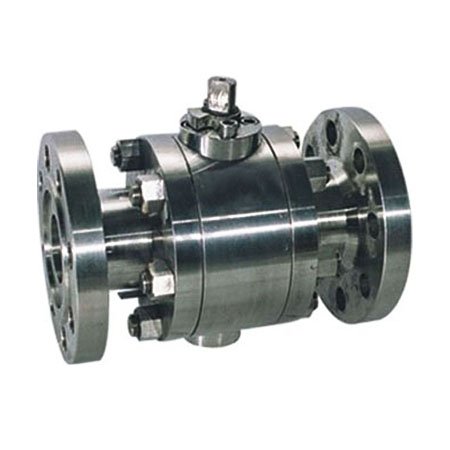

API 6D Certified Forged Flanged Floating Ball Valve – Fire-Safe & Low-Torque Design
Key Structural Features
✅ Floating Ball Design:
Anti-Blowout Stem: Ensures stem integrity under high pressure (150LB~1500LB/PN16~PN250).
Full-Port Flow: Minimizes pressure drop for oil, gas, and chemical pipelines (1/2″~12″).
✅ Modular Body Options:
2-Piece or 3-Piece Split Body: Bolted or split-body design (ASME B16.34) for easy maintenance.
Fire-Safe & Anti-Static: API 607/ISO 10497 compliant graphite seals and static discharge chain.
✅ Low-Torque Operation:
ISO 5211 actuator mounting pad for direct pneumatic/electric actuator integration.
Locking Handle: Visual open/close indicator for safety compliance.
✅ Versatile Configurations:
Flange Types: RF, RTJ, butt weld, or grooved ends (ASME B16.5/B16.25).
Material Grades: A105 (carbon steel), F11/F51 (alloy), F304/F316 (stainless) for corrosive/HPHT service.
