Forged Steel Gate Globe Check Valve

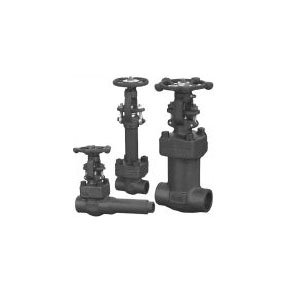

API602 Forged Steel Gate Valve

Design standard: API 602/BS5352
Face to Face: flange/ butt welding end to ASME B16.10
SW & threaded end to manufacturer standard
Flange end: ASME B16.5
BW end: ASME B16.25
Wall thickness: API 602/ASME B16.34
Inspection and test: API 602
Pressure and temperature rating: ASME B16.34
Product range: NPS ½″~NPS 3″,CL150~CL2500
Material: A105､LF2､F11､F22､F51､F91､F304､F316､F304L､F316L etc.
Operation: handle, bevel gear, electric, pneumatic, etc.
China Forged Steel Gate Valve Manufacturer Provider Supplier API 602 Gate Valves

API 602 A105 Forged Steel OS&Y Gate Valve Socket Weld End for High Temperature Power & Petrochemical Pipeline

Oilong Valve API 602 forged steel OS&Y gate valve series, A105 body with socket weld ends for high temperature steam and oil pipeline isolation

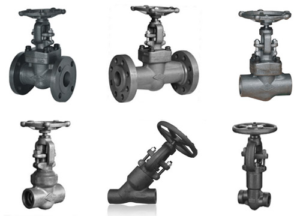

API 602 Forged Steel Globe Valve

Design standard: API 602/BS5352
Face to face: SW / threaded end to manufacturer standard
Flange/ BW end to ASME B16.10
Flange end: ASME B16.5
BW end: ASME B16.25
Wall thickness: API 602/ASME B16.34
Inspection and test: API 602
Pressure and temperature: ASME B16.34
Product range: NPS ½″~NPS 4″,CL150~CL4500
Material: A105､LF2､F11､F22､F51､F91､F304､F316､F304L､F316L etc.
Operation: handle, bevel gear, electric, pneumatic, etc.
China Forged Steel Globe Valve Manufacturer Provider Supplier API 602 Globe Valves

API 602 A105 Forged Steel Globe Valve Series, Flanged, Socket Weld and Y Pattern Globe Valve for High Temperature Petrochemical Pipeline

Oilong Valve API 602 forged steel globe valve product series, including flanged, socket weld and Y-type globe valves, A105 body for high pressure steam and refinery pipeline control

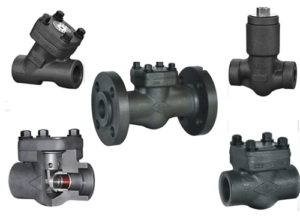

API 602 Forged Steel Check Valve

Design standard: API 602/ BS 5352
Face to face: SW/ threaded end to ASME B16.10/ GB/T 12221
Flange/ BW end to ASME B16.10/ GB/T 12221
Flange end: ASME B16.5/GB/T 9113/HG/T 20592/ EN 1092.1
BW end: ASME B16.25/ GB/T 12224
Wall thickness: API 602/ASME B16.34/ GB/T 12224
Inspection and test: API 602/GB/T 13927
Pressure and temperature: ASME B16.34/ EN 12516 /GB/T 12224
Product range: NPS ½″~NPS 2″ (DN15~DN50) CL150~CL2500 (PN16~PN420)
Material: A105､LF2､F11､F22､F51､F91､F304､F316､F304L､F316L etc.
China Forged Steel Swing Check Valve Manufacturer Provider Supplier API 602 Swing Check Valves

API 602 A105 Forged Steel Swing Check Valve Series, Flanged and Socket Weld Ends for High Temperature Steam & Petrochemical Pipeline

Oilong Valve API 602 forged steel swing check valve, piston check valve full series, A105 body with flanged and socket weld ends, for high pressure steam pipeline one-way flow control

  • Forged Steel Valve Catalog
    ▷ DOWNLOAD
