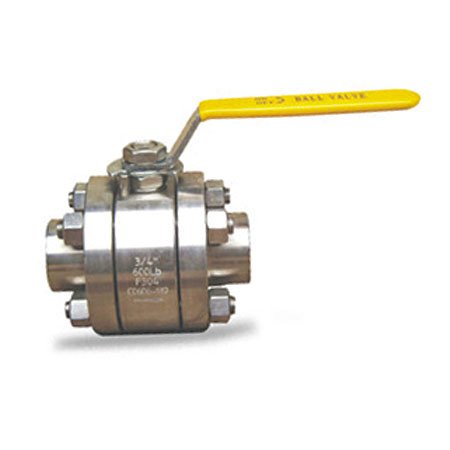

Small Size F304 Ball Valve

Small Size F304 Ball Valve

Small Size F304 Ball Valve

ASME B16.34 F304 Ball Valve – Compact & High-Temperature Solution

Key Structural Features
✅ F304 Stainless Steel Body: Superior corrosion resistance for chemical, marine, and acidic media.
✅ Cryogenic to Extreme Heat: Operates from -196°C (LNG) to +600°C (steam), ideal for refinery or cryogenic pipelines.
✅ CL600 Pressure Rating: ASME B16.34-compliant design for high-pressure oil, gas, or chemical systems.
✅ SW (Socket Weld) Ends: Seamless ASME B16.11 integration for compact piping systems.
✅ Fire-Safe & Anti-Static: Graphite-packed stem with API 607/6FA compliance and anti-blowout stem.
✅ Low-Emission Packing: ISO 15848-certified for fugitive emission control.

Technical Highlights
Bore Options: Full bore (minimal pressure drop) or reduced bore (flow control).
Lever Operation: Low-torque design with optional locking handle for safety.
Top Flange: Optional ISO 5211 mounting pad for pneumatic/electric actuators.
Tested Rigorously: API 598 hydro/pneumatic tests ensure zero leakage.

Category:

Description

Design standard: ASME B16.34.
Body material: F304.
Nominal diameter: 3/4″.
Pressure: CL600.
End connection: SW.
Face to face: ASME B16.10.
Working temperature:-196℃~+600℃
Mode of operation: Lever
Test and inspection: API 598.

Industry Applications
Oil & Gas: HP/HT wellhead control, sour gas pipelines (NACE MR0175 optional).
Chemical: Acid, caustic, or solvent transfer.
LNG & Cryogenics: Liquid nitrogen, oxygen, or LNG storage.
Power Generation: Superheated steam isolation.

Why Choose This Valve?
✨ Space-Saving: 3/4″ compact size (DN20) for tight installations.
✨ Dual Certification: Combines ASME B16.34 strength with ISO 15848 emissions control.
✨ Global Compliance: CE, PED, and TA-Luft certifications available.
