A ball valve is a quarter-turn valve designed with a perforated, and pivoting ball to regulate fluid flow. Widely utilized in industrial applications due to their reliability, effortless operation, and versatility, these valves transition seamlessly between open and closed states with a 90° rotation. The center-bored ball design ensures precise alignment with pipeline ports in the open position, enabling unrestricted flow, while the tight shut-off mechanism guarantees zero leakage when fully closed. Ideal for demanding sectors like oil & gas, chemical processing, and water systems, ball valves offer robust performance across diverse pressure and temperature conditions.

A trunnion-mounted ball valve is a quarter-turn valve featuring a perforated ball fixed on a trunnion shaft to regulate fluid flow. These valves provide reduced operating torque and superior long-term performance compared to floating ball designs, making them ideal for high-pressure applications. While their advanced mechanical design ensures reliability in demanding conditions, it also necessitates specialized maintenance protocols. Trunnion-mounted ball valves are widely utilized in critical industries such as oil & gas, LNG, coal gas systems, and high-pressure pipeline networks.

Oilong Trunnion Ball Valves, also known as Fixed Ball and Mounted Ball Valves, available in 2-Piece or 3-Piece Ball Valves in Stainless Steel CF8M / CF8 or Carbon Steel WCB material with class 150, class 300, and class 600.
Design standard: API 6D
Flange ends: ASME B16.5/ASME B16.47
BW ends: ASME B16.25/ ASME B31.8
Fireproof test: API 607/API 6FA
Inspection and test: API 6D
Pressure and temperature: ASME B16.34
Range: NPS 1-1/2″~NPS 60″,CL150~CL2500
Body material: WCB､LCB､WCC､CF8､CF8M､CF3､CF3M､A890 4A etc.
Seat material: PTFE､RPTFE､NYLON､DEVLON､Derlin､PEEK､PPL､HNBR､FKMor metal hard seal etc.
Operation: Handle, gear, electric, pneumatic, pneumatic- hydraulic, electro-hydraulic, etc.

Floating ball valves are a straightforward yet highly effective valve design. They excel in sealing performance compared to trunnion-mounted ball valves, as system pressure directly forces the floating ball against the downstream seat, creating a bubble-tight seal. In contrast, trunnion valves rely on pressure pushing the upstream seat toward the ball, making their sealing performance more susceptible to impurities that may lodge in the seat pocket. This inherent design simplicity ensures floating ball valves deliver consistent reliability in critical applications. They are widely used in oil & gas pipelines, chemical processing, metallurgy, and construction industries, particularly where leak-tight operation is paramount.

Oilong Floating Flanged Ball Valves, full port or reduced port, available in Unibody, 2-piece and 3-piece body options in Stainless Steel CF8M / CF8, Carbon Steel WCB or Alloy Steel material with class 150, class 300, and class 600 etc.
Design: ASME B16.34/ API 608/ BS 5351
Flange ends: ASME B16.5
BW ends: ASME B16.25
Fireproof test: API 607/API 6FA
Inspection and test: API 598
Pressure and temperature: ASME B16.34
Range: NPS 1/2″~NPS 8″,CL150~CL600
Range: NPS 1/4″~NPS 2″,CL800~CL1500
Body material: WCB､LCB､WCC､CF8､CF8M､CF3､C3M､A890 4A､A105､LF2､F304､F316､F304L､F316L etc.
Seat material: PTFE､RPTFE､NYLON､DEVLON､Derlin､PEEK､PPL or metal hard seal etc.
Operation: Handle, gear, electric, pneumatic etc.

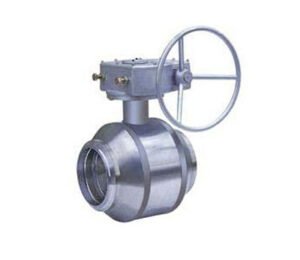

Fully Welded Ball Valves are One of the most trusted valves in the petroleum industry and has the body fully welded by pipe materials. Fully welded ball valve combines the strength of forged steel components with a lightweight and compact spherical design. It is designed for district heating system , heat transfer piping , oil pipelines and gas industry application.

Size ： 1/2”~56”（DN15~DN1400）
Rating ： 150~2500LB（PN16~PN420）
Body Materials ： Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim ： Carbon Steel, Stainless Steel, Duplex Steel
End Connection ： RF，BW

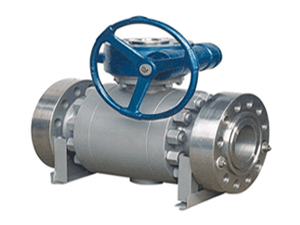

Meatal Seated Ball Valves are Suitable for abrasive or sticking fluids. It has Single direction seal,Low coefficient of friction, low torque. Metal seats can endure severe flashing, hydraulic shock, abrasive process fluid, and high temperatures up to and exceeding 1,000° F. They are also ideal for high erosion or corrosion applications.

Size ： 1/2”~24”（DN15~DN600）
Rating ： 150~1500LB
Body Materials ： Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim ： Carbon Steel, Stainless Steel, Duplex Steel
End Connection ： RF，BW
China Ball Valve Manufacturer Provider Supplier Meatal Seated Ball Valves

3-way ball valves are used for dividing or mixing fluids and other special working media.including Full Bore and Reduced Bore 3-Way, 2-Seats, “L” Port Available with soft seats or metal seats. Each offers a range of performance suitable to many applications also 3-Way Top Entry, 4-Seats, “L” Port and “T” Port Used for diverting or mixing fluids.

Size ： 1/2”~10”（DN15~DN250）
Rating ： 150~300LB（PN16~PN40）
Body Materials ： Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim ： Carbon Steel, Stainless Steel, Duplex Steel
End Connection ： RF，BW
